Challenge:

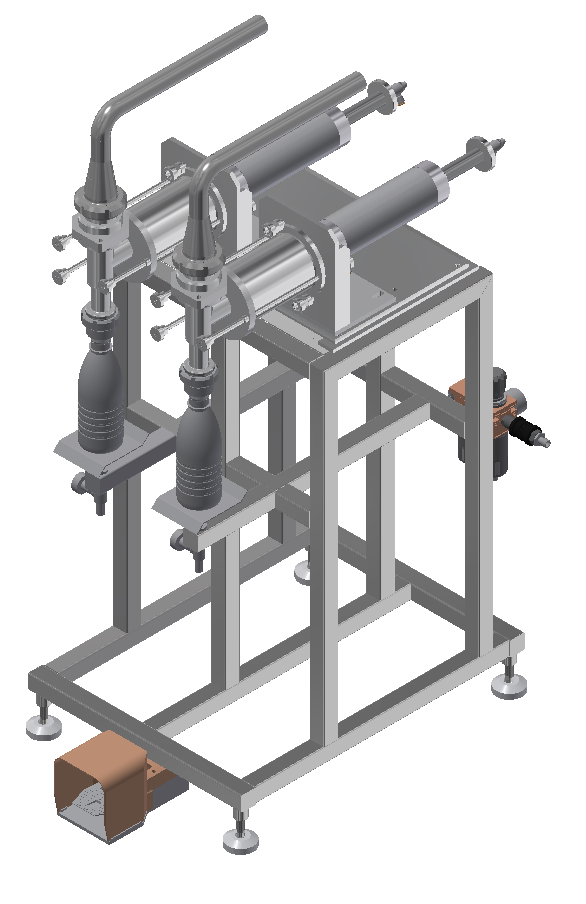

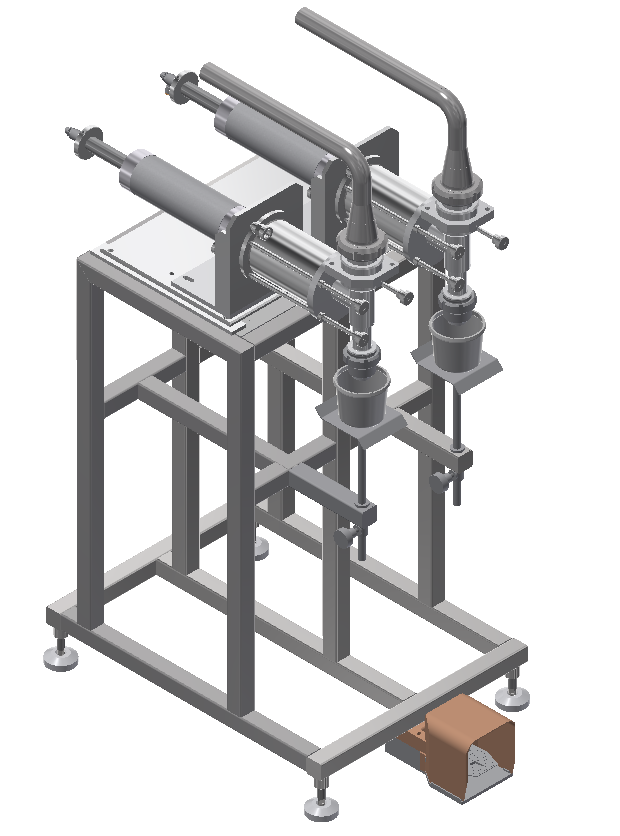

Small dosing machine complete pneumatic machine with two dosing cylinder. Opionaly can be given with one dosing head but in this case speed will be doule slower.
Solution:
This is a semi-automatic device with manual loading containers. Easy to handle, so that it can serve the workers of lower level of expertise.

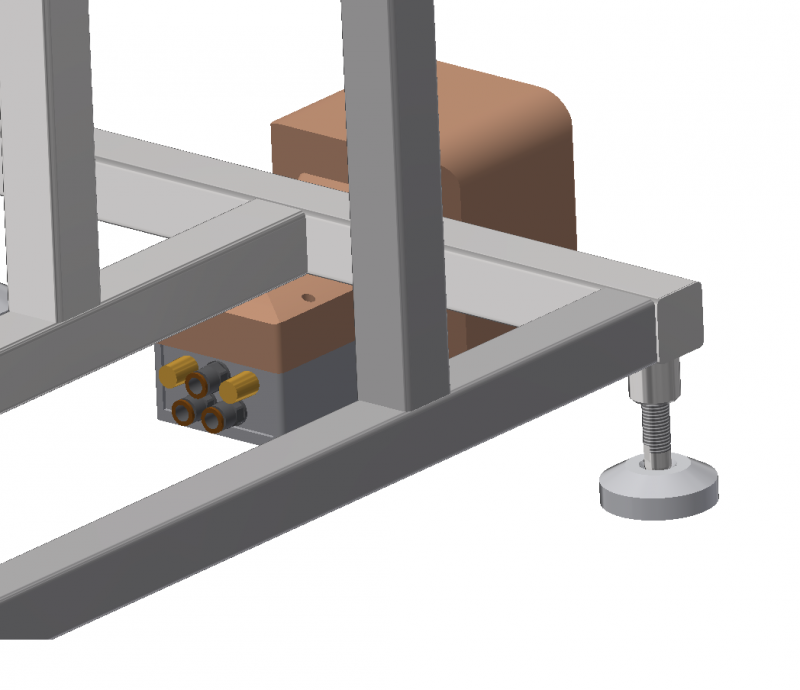

The machine is built on a common base frame with adjustable feet machines
1. Machine base Self stand machines formed as a welded structure

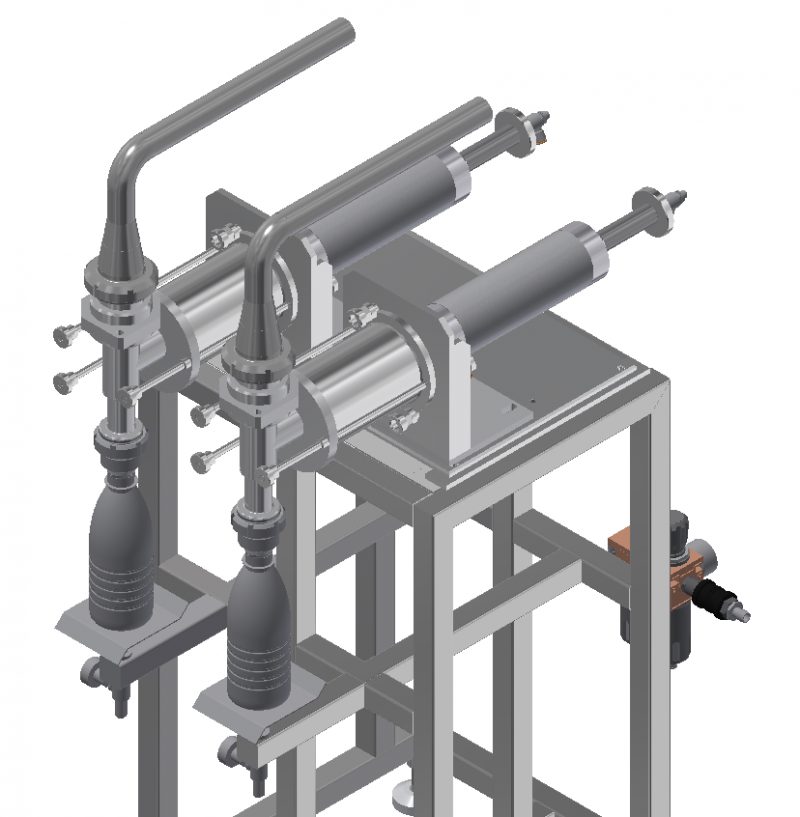

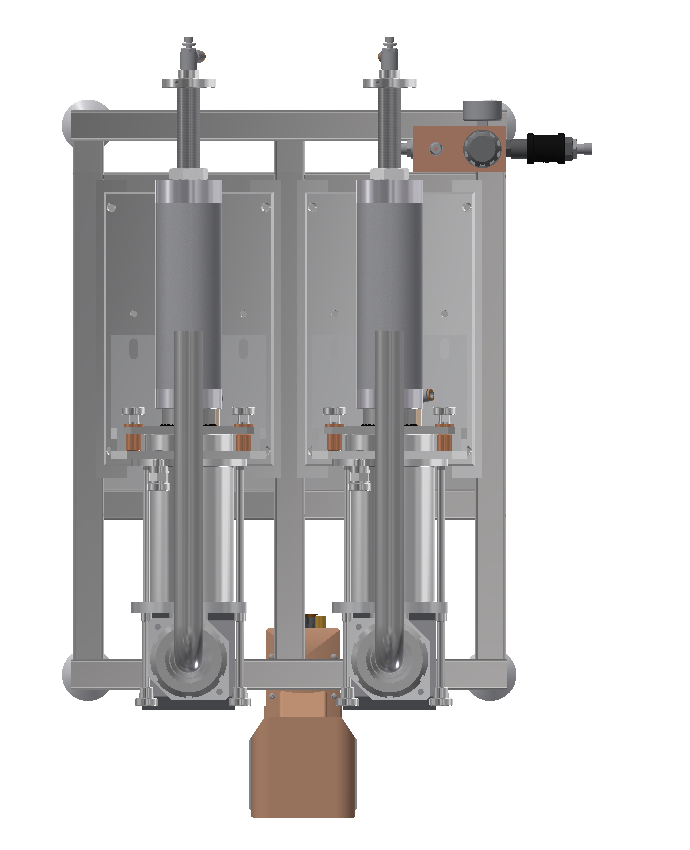

2. Dosing system Two head of dosing with peneumatic cylinder (manufacturer: e.g. Metalworks srl). The dosing system is designed as a piston pump mechanism, with non-return valves, which enable accurate filling of the metering vacuum in the mass, and therefore the high precision and reproducibility of the measured quantities. The mechanism for adjusting the metered quantity is made in the form of spindle and work as hard stroke limiter piston rod of the pneumatic cylinder. Adjust the amount is done by turning knobs, and control be used dosed quantity gauge. Dismantling of the piston, to replace the cuff is very simple. Complete device is made of stainless steel and other materials allowed for use in the food industry. For proper operation of the machine it is essential that serve more than two operator. The first operator is working on the management of the working process uređaja.Drugi operator is working on bringing empty containers and removal of finished products in the warehouse. Possible development of additional options for filling the thermally treated cream and crumbled cheese with pneumatic inserting snap lid.

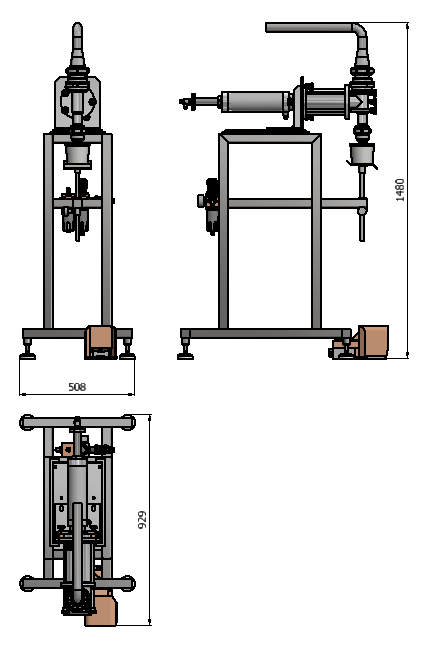

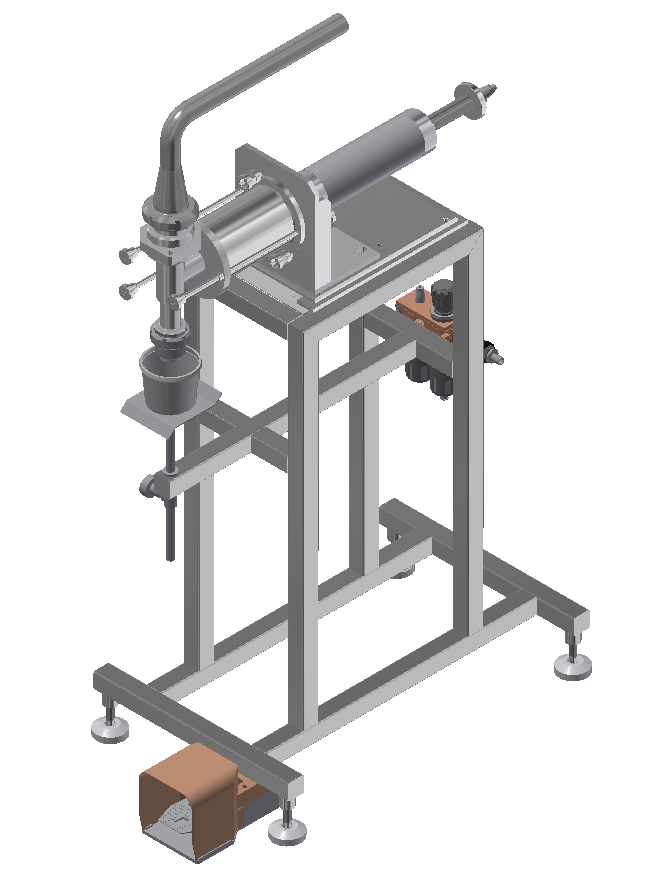

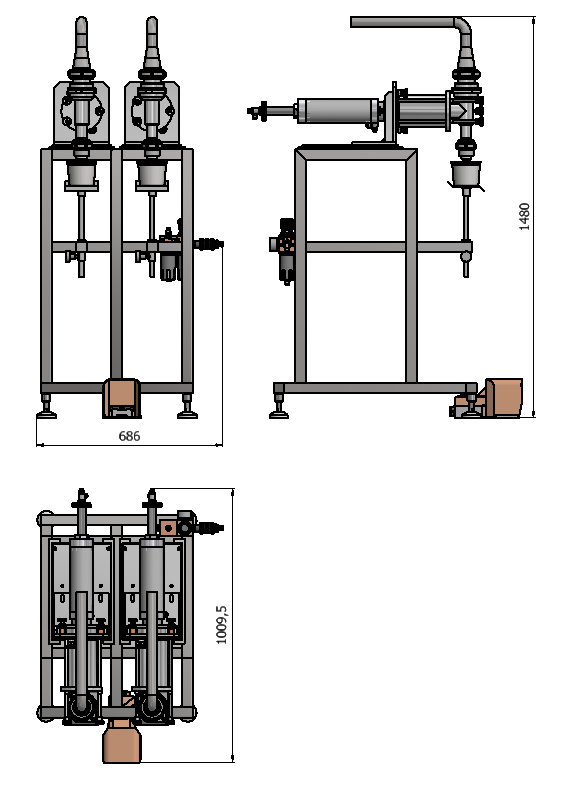

DOSPAK 1500 - partCAD
